Akulon® Fuel Lock FL40-HPX2

Low fuel permeation PA6 suitable for use in blow molding

Back to results

General Information

Akulon® is our family of high performance polyamide 6 and polyamide 66 materials, used by customers across the world in applications ranging from automotive, electronics & electrical, to furniture and packaging.
We offer Akulon® grades for injection molding, blow molding and extrusion (including barrier film, stock shapes, convoluted tubes, and mono and multi filament).
In molded parts the material offers an excellent balance of easy design and processing with outstanding mechanical properties over a wide temperature range and in diverse conditions. Meanwhile for extrusion the strength, resilience and easy processing of Akulon® sets the market standards.
Special features
General Document
Regulatory Affairs
  • Absence Declaration BNST2023-11-16
  • Absence Declaration Biocidal Products2023-11-16
  • Absence Declaration DMF (2009/251/EC: Dimethylfumarate)2023-11-16
  • Absence Declaration ELV (2000/53/EC: Heavy metals)2024-02-15
  • Absence Declaration EPA 20 High Priority Substances 20192023-11-16
  • Absence Declaration Food Allergens2023-11-16
  • Absence Declaration NMP (N-Methylpyrrolidone)2023-11-16
  • Absence Declaration Nano Materials2023-11-16
  • Absence Declaration Ozone Depleting Chemicals2024-06-27
  • Absence Declaration PAH (Polycyclic Aromatic Hydrocarbons)2023-11-16
  • Absence Declaration PBT chemicals under TSCA section 6(h)2023-11-16
  • Absence Declaration PFAS2024-03-05
  • Absence Declaration POPs (Persistent Organic Pollutants)2024-09-04
  • Absence Declaration Phthalates (2005/84/EC: DEHP, DBP, BBP,DINP,DIDP, DNOP)2023-11-16
  • Absence Declaration Red Phosphorus2023-11-16
  • Absence Declaration opBDE (2003/11/EC: Octa- / Pentabromodiphenylether)2023-11-16
  • Compliance Statement EU Sanctions and Embargos2024-05-16
  • Conflict minerals declaration (EICC, GeSI)2024-05-15
  • Deforestation Statement, Regulation (EU) 2023/1115 (EUDR)2024-09-19
  • Packaging Declaration EU Decision 97/129/EC (labelling)2024-04-17
  • Packaging, Packaging Waste and CONEG declaration (94/62/EC)2021-12-06
  • REACH Registration Statement2024-03-27
  • REACH STATEMENT KOREA2023-11-16
  • REACH STATEMENT TURKYE2023-11-16
  • RoHS Statement (2011/65/EC: Heavy metals)2024-02-01
  • SVHC, REACH Annex XIV and –XVII Statement2024-11-08
Processing technology
Blow Molding
Automotive OEM
CALLOUT
OEM Specification
ASTM D6779 PA0261
Applications
Have a question? Contact us

Rheological properties

Melt volume-flow rate
35
cm³/10min
Temperature
275
°C
Load
21.6
kg
Molding shrinkage (parallel)
1.6
%
Molding shrinkage (normal)
1.5
%

Mechanical properties

Tensile modulus
2150
MPa
Tensile modulus (-40°C)
2300
MPa
Yield stress
54
MPa
Yield stress (-40°C)
84
MPa
Yield strain
3.8
%
Yield strain (-40°C)
7.5
%
Nominal strain at break
>50
%
Stress at break
46
MPa
Stress at break (-40°C)
60
MPa
Strain at break (-40°C)
18
%
Flexural modulus
2000
MPa
Flexural strength
75
MPa
Charpy impact strength (+23°C)
N
kJ/m²
Charpy impact strength (-30°C)
N
kJ/m²
Charpy notched impact strength (+23°C)
90
kJ/m²
Charpy notched impact strength (-30°C)
22
kJ/m²
Puncture - maximum force (+23°C)
4000
N
Puncture - maximum force (-30°C)
5500
N
Puncture - maximum force (-40°C)
5800
N
Puncture energy (+23°C)
49
J
Puncture energy (-30°C)
63
J
Puncture energy (-40°C)
75
J

Thermal properties

Glass Transition Temperature from DMTA (tan d)
71
°C
Temp. of deflection under load (1.80 MPa)
55
°C
Temp. of deflection under load (0.45 MPa)
100
°C
Vicat softening temperature (50°C/h 50N)
155
°C
Coeff. of linear therm. expansion (parallel)
1.5
E-4/°C
Coeff. of linear therm. expansion (normal)
0.9
E-4/°C

Other properties

Water absorption
7.4
%
Humidity absorption
2.9
%
Density
1080
kg/m³

Diagrams

Applications

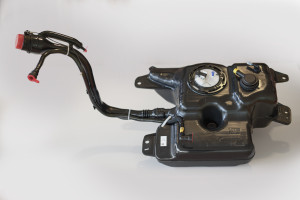

Fuel tank PHEV

Industry
Automotive
Material
  • •} Low Fuel permeation
  • •} Cold impact resistance
}
More information

Outdoor power product fuel tanks

Industry
Consumer goods
Material
  • •} Increased design freedom (minimum wall thickness possible up to 1.2mm)
  • •} Evaporative emissions barrier more than six times higher than regulations require
  • •} Guaranteed to last for the lifetime of the product
}
More information
