Arnite® TV4 220
10% Glass Reinforced
General Information
Arnite® T (PBT) is a high-performance engineering plastic that combines high strength and rigidity with excellent processing characteristics. It’s well suited for a broad range of automotive, electrical & electronic and consumer goods applications.
Special features
General Document
Regulatory Affairs
- Absence Declaration BNST2023-11-16
- Absence Declaration Biocidal Products2023-11-16
- Absence Declaration DMF (2009/251/EC: Dimethylfumarate)2023-11-16
- Absence Declaration ELV (2000/53/EC: Heavy metals)2024-02-15
- Absence Declaration EPA 20 High Priority Substances 20192023-11-16
- Absence Declaration Food Allergens2023-11-16
- Absence Declaration NMP (N-Methylpyrrolidone)2023-11-16
- Absence Declaration Nano Materials2023-11-16
- Absence Declaration Ozone Depleting Chemicals2024-06-27
- Absence Declaration PAH (Polycyclic Aromatic Hydrocarbons)2023-11-16
- Absence Declaration PBT chemicals under TSCA section 6(h)2023-11-16
- Absence Declaration PFAS2024-03-05
- Absence Declaration POPs (Persistent Organic Pollutants)2024-09-04
- Absence Declaration Phthalates (2005/84/EC: DEHP, DBP, BBP,DINP,DIDP, DNOP)2023-11-16
- Absence Declaration Red Phosphorus2023-11-16
- Absence Declaration opBDE (2003/11/EC: Octa- / Pentabromodiphenylether)2023-11-16
- CALIFORNIA PROPOSITION 65 (INDUSTRIAL USE)2024-01-02
- Compliance Statement EU Sanctions and Embargos2024-05-16
- Conflict minerals declaration (EICC, GeSI)2024-05-15
- Deforestation Statement, Regulation (EU) 2023/1115 (EUDR)2024-09-19
- Packaging Declaration EU Decision 97/129/EC (labelling)2024-04-17
- Packaging, Packaging Waste and CONEG declaration (94/62/EC)2021-12-06
- REACH Registration Statement2024-03-27
- REACH STATEMENT KOREA2023-11-16
- REACH STATEMENT TURKYE2023-11-16
- RoHS Statement (2011/65/EC: Heavy metals)2024-02-01
- SVHC, REACH Annex XIV and –XVII Statement2024-11-08
Processing technology
Injection Molding
Injection Molding
Applications
Rheological properties
Melt volume-flow rate
21
cm³/10min
ISO 1133
Temperature
250
°C
ISO 1133
Load
2.16
kg
ISO 1133
Molding shrinkage [parallel]
0.85
%
Sim. to ISO 294-4
Molding shrinkage [normal]
1.5
%
Sim. to ISO 294-4
Mechanical properties
Tensile modulus
4600
MPa
ISO 527-1/-2
Stress at break
90
MPa
ISO 527-1/-2
Strain at break
4
%
ISO 527-1/-2
Charpy impact strength (+23°C)
30
kJ/m²
ISO 179/1eU
Charpy impact strength (-30°C)
30
kJ/m²
ISO 179/1eU
Charpy notched impact strength (+23°C)
3.9
kJ/m²
ISO 179/1eA
Charpy notched impact strength (-30°C)
3.9
kJ/m²
ISO 179/1eA
Thermal properties
Melting temperature (10°C/min)
225
°C
ISO 11357-1/-3
Coeff. of linear therm. expansion (parallel)
0.6
E-4/°C
ISO 11359-1/-2
Coeff. of linear therm. expansion (normal)
0.8
E-4/°C
ISO 11359-1/-2
Electrical properties
Volume resistivity
>1E13
Ohm*m
IEC 62631-3-1
Other properties
Water absorption
0.35
%
Sim. to ISO 62
Humidity absorption
0.16
%
Sim. to ISO 62
Density
1370
kg/m³
ISO 1183
Diagrams
Applications

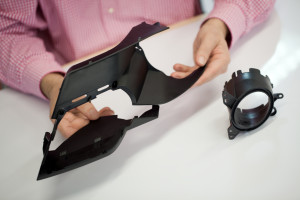

Bezels and AFL Frames
Industry
Automotive
- •} Reliable
- •} Low outgassing behavior
- •} Long term road visibility
- •} Cost effective
E-Boxes
Industry
Automotive
Material
Stanyl® PA46 also used in connectors, e-motor parts, bobbins, sensors, fuse boxes.}
Fuse Holders
Industry
Automotive
Material
Stanyl® PA46 also used in connectors, e-motor parts, bobbins, sensors, fuse boxes.}
