Arnitel® EL250

Injection Molding, Food Contact Quality

Back to results

General Information

Arnitel® is a high-performance ThermoPlastic Copolyester (TPC) that offers you a unique combination of flexibility, high temperature resistance and strength - plus excellent processing characteristics.
In industries ranging from automotive to E&E, Arnitel® is increasingly being as a lighter, smarter, greener alternative to conventional rubbers – reducing environmental impact and ultimately, system costs.
The product is supported by an experienced and knowledgeable global team continuously working on new ideas and applications, as well as exploring new markets. By listening to your needs and understanding your process and products, we develop solutions that make a real difference.
Special features
General Document
Regulatory Affairs
  • Absence Declaration BNST2023-11-16
  • Absence Declaration Biocidal Products2023-11-16
  • Absence Declaration DMF (2009/251/EC: Dimethylfumarate)2023-11-16
  • Absence Declaration ELV (2000/53/EC: Heavy metals)2024-02-15
  • Absence Declaration EPA 20 High Priority Substances 20192023-11-16
  • Absence Declaration Food Allergens2023-11-16
  • Absence Declaration NMP (N-Methylpyrrolidone)2023-11-16
  • Absence Declaration Nano Materials2023-11-16
  • Absence Declaration Ozone Depleting Chemicals2024-06-27
  • Absence Declaration PAH (Polycyclic Aromatic Hydrocarbons)2023-11-16
  • Absence Declaration PBT chemicals under TSCA section 6(h)2023-11-16
  • Absence Declaration PFAS2024-03-05
  • Absence Declaration POPs (Persistent Organic Pollutants)2024-09-04
  • Absence Declaration Phthalates (2005/84/EC: DEHP, DBP, BBP,DINP,DIDP, DNOP)2023-11-16
  • Absence Declaration Red Phosphorus2023-11-16
  • Absence Declaration opBDE (2003/11/EC: Octa- / Pentabromodiphenylether)2023-11-16
  • CALIFORNIA PROPOSITION 65 (INDUSTRIAL USE)2024-01-02
  • Compliance Statement EU Sanctions and Embargos2024-05-16
  • Conflict minerals declaration (EICC, GeSI)2024-05-15
  • Deforestation Statement, Regulation (EU) 2023/1115 (EUDR)2024-09-19
  • Food Contact Canada Information (LONO)2024-11-06
  • Food Contact Declaration Europe Arnitel®2023-11-10
  • Food Contact Declaration MERCOSUR Arnitel®2024-06-27
  • Food Contact Declaration USA Arnitel®2023-11-21
  • Food Contact India Information Letter2023-05-11
  • Food Contact Singapore Information Letter2024-02-15
  • Packaging Declaration EU Decision 97/129/EC (labelling)2024-04-17
  • Packaging, Packaging Waste and CONEG declaration (94/62/EC)2021-12-06
  • REACH Registration Statement2024-03-27
  • REACH STATEMENT KOREA2023-11-16
  • REACH STATEMENT TURKYE2023-11-16
  • RoHS Statement (2011/65/EC: Heavy metals)2024-02-01
  • SVHC, REACH Annex XIV and –XVII Statement2024-11-08
Yellow Card
Processing technology
Injection Molding
Design challenge
Haptics & Aesthetics | Haptics
Applications
Have a question? Contact us

Rheological properties

Melt volume-flow rate
48
cm³/10min
Temperature
230
°C
Load
2.16
kg
Molding shrinkage [parallel]
1
%
Molding shrinkage [normal]
1
%

Mechanical properties

Flexural modulus
20
MPa
Charpy impact strength (+23°C)
N
kJ/m²
Charpy impact strength (-30°C)
N
kJ/m²
Charpy notched impact strength (+23°C)
N
kJ/m²
Charpy notched impact strength (-30°C)
N
kJ/m²
Izod notched impact strength (+23°C)
N
kJ/m²
Izod notched impact strength (-20°C)
N
kJ/m²
Tensile notched impact strength (+23°C)
N
kJ/m²

Thermal properties

Melting temperature (10°C/min)
180
°C
Glass transition temperature (10°C/min)
-80
°C
Glass Transition Temperature from DMTA (tan d)
-74
°C
Coeff. of linear therm. expansion (parallel)
2.2
E-4/°C
Coeff. of linear therm. expansion (normal)
2.2
E-4/°C
Burning Behav. at 1.5 mm nom. thickn.
HB
class
Thickness tested
1.5
mm
UL recognition
Yes
-
Relative Temperature Index - electrical
50
°C
RTI electrical (Thickness (1) tested)
1.5
mm
Relative Temperature Index - with impact
50
°C
RTI with impact (Thickness (1) tested)
1.5
mm
Relative Temperature Index - without impact
50
°C
RTI without impact (Thickness (1) tested)
1.5
mm

Electrical properties

Volume resistivity
5E12
Ohm*m

Other properties

Water absorption
0.8
%
Density
1080
kg/m³
Apparent density
645
kg/m³

Rheological calculation properties

Density of melt
905
kg/m³

Mechanical properties (TPE)

Tensile modulus
25
MPa
Stress at 5% strain
1.3
MPa
Stress at 10% strain
2.1
MPa
Stress at 50% strain
4.5
MPa
Stress at 100% strain
5.1
MPa
Stress at break
15
MPa
Strain at break
>300
%
Nominal strain at break
900
%
Shore A Hardness (3s)
85
-
Shore D Hardness (3s)
25
-

Diagrams

Applications

Arnitel spring in monitor arm

Industry
Consumer goods
Material
Adjustable load bearing for monitor arm}
More information

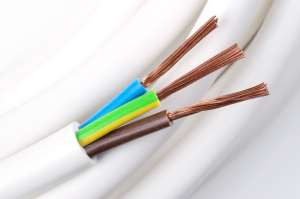

DC Cables

Industry
Electronics
Material
DC Cables are generally used for standard electronics charging systems, like adapters. The latest designs can also be used for USB-C charging, leading to much thinner cables than AC with similar charging and safety characteristics.}
More information

Grips

Industry
Consumer goods
Material
Grips are applicable to consumer appliances such as kitchenware, household utensils, hand tools, game controllers and much more. The material is usually overmolded on PC, PC/ABS or polyester.}
More information

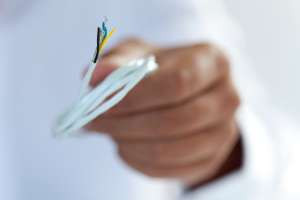

Outdoor consumer cables

Industry
Electronics
Material
Thin low voltage consumer electornics cabling, used in the outdoor environment to accommodate the use of electronics in the field, i.e. camera's, sensors etc.}
More information

Phone case

Industry
Consumer goods
Material
Product designers and manufacturers increasingly rely on thermoplastic elastomer (TPE) material solutions to produce and deliver highly durable and high-quality soft touch parts. Compared to the thermoplastic polyurethane (TPU) materials traditionally used for soft-touch manufacturing, TPEs offer better resistance to warpage and fatigue, as well as better protection against UV, chemical, and oil exposure.}
More information

Robotic cable jackets & tubes

Industry
Robotics
Material
  • •} Arnitel® is a proven halogen-free solution for cables used in many E&E applications.
  • •} Arnitel® offers excellent flame retardant performance for safety.
  • •} Arnitel® is formulated for both strength and flexibility, making it an ideal material for cable jackets and tubes.
}
More information

Robotic grippers

Industry
Robotics
Material
  • •} Proven track record of performance in many key industries.
  • •} Formulated for easy processing, strength, chemical resistance, and a soft touch finish.
  • •} Food contact and medical grades available.
}
More information

Soft touch in spatulas and kitchenware

Industry
Consumer goods
Material
Arnitel® TPC is a reliable solution for spatulas and kitchenware because of its excellent adhesion with PBT in 2K injection molding, its superb scratch-resistance (which make kitchen tools look better even after years of intensive usage), its chemical-resistance (dishwasher-proof) and its approvals for direct food contact.}
More information

Support Springs

Industry
Consumer goods
Material
Low creep flexing solution for slats and mattresses, creating ultimate sleep comfort by changing durometer per section of your bed.}
More information

Wine Taps

Industry
Consumer goods
Material
The Wine Tap is used in bag and boxed wine packaging for distributing wine.}
More information
