Stanyl® TW278F10

50% Glass Reinforced, Heat Stabilized, Wear and Friction Modified

Back to results

General Information

Stanyl® is our high-performance polyamide 46 used for applications in automotive, E&E, gears and outdoor power equipments.
Stanyl® is a high performance polyamide that provides unmatched performance and value for demanding applications in which superior heat resistance, design stiffness, wear & friction and process flow qualities are required.
Because Stanyl retains its mechanical properties at high temperatures up to 220°C, this makes it ideal for extremely high-performance applications, where it outperforms PPA, PA6T, PA9T, and often PPS and LCP.
Product
Stanyl® TW278F10 is a friction-modified high heat polyamide that offers excellent creep resistance, strength, stiffness and fatigue resistance especially at high temperatures in combination with cycle-time advantages and excellent flow. TW278F10 has an excellent track-record in gear applications.
Special features
  • Heat stabilized
  • Wear and friction modified
General Document
Regulatory Affairs
  • Absence Declaration BNST2023-11-16
  • Absence Declaration Biocidal Products2023-11-16
  • Absence Declaration DMF (2009/251/EC: Dimethylfumarate)2023-11-16
  • Absence Declaration ELV (2000/53/EC: Heavy metals)2024-02-15
  • Absence Declaration EPA 20 High Priority Substances 20192023-11-16
  • Absence Declaration Food Allergens2023-11-16
  • Absence Declaration NMP (N-Methylpyrrolidone)2023-11-16
  • Absence Declaration Nano Materials2023-11-16
  • Absence Declaration Ozone Depleting Chemicals2024-06-27
  • Absence Declaration PAH (Polycyclic Aromatic Hydrocarbons)2023-11-16
  • Absence Declaration PBT chemicals under TSCA section 6(h)2023-11-16
  • Absence Declaration PFAS (PTFE containing)2024-03-05
  • Absence Declaration POPs (Persistent Organic Pollutants)2024-09-04
  • Absence Declaration Phthalates (2005/84/EC: DEHP, DBP, BBP,DINP,DIDP, DNOP)2023-11-16
  • Absence Declaration Red Phosphorus2023-11-16
  • Absence Declaration opBDE (2003/11/EC: Octa- / Pentabromodiphenylether)2023-11-16
  • Compliance Statement EU Sanctions and Embargos2024-05-16
  • Conflict minerals declaration (EICC, GeSI)2024-05-15
  • Deforestation Statement, Regulation (EU) 2023/1115 (EUDR)2024-09-19
  • Packaging Declaration EU Decision 97/129/EC (labelling)2024-04-17
  • Packaging, Packaging Waste and CONEG declaration (94/62/EC)2021-12-06
  • REACH Registration Statement2024-03-27
  • REACH STATEMENT KOREA2023-11-16
  • REACH STATEMENT TURKYE2023-11-16
  • RoHS Statement (2011/65/EC: Heavy metals)2024-02-01
  • SVHC, REACH Annex XIV and –XVII Statement2024-11-08
Processing technology
Injection Molding
Design challenge
Wear & Friction
Automotive OEM
CALLOUT, GM
OEM Specification
GMW15702-110022
ISO 16396-PA 46/6,GF50,MS, S09-160
Applications
Have a question? Contact us

Rheological properties

Molding shrinkage [parallel]
0.4
%
Molding shrinkage [normal]
0.9
%
Spiral flow length 1.0 mm 800 bar
160
mm
Spiral flow length 1.0 mm 900 bar
170
mm
Spiral flow length 1.0 mm 1000 bar
180
mm

Mechanical properties

Tensile modulus
16000
MPa
Tensile modulus (-40°C)
18000
MPa
Tensile modulus (100°C)
10000
MPa
Tensile modulus (160°C)
8300
MPa
Tensile modulus (200°C)
7600
MPa
Stress at break
235
MPa
Stress at break (-40°C)
220
MPa
Stress at break (160°C)
120
MPa
Stress at break (200°C)
105
MPa
Strain at break
2.2
%
Strain at break (-40°C)
1.5
%
Strain at break (160°C)
3.4
%
Strain at break (200°C)
3.5
%
Flexural modulus
12500
MPa
Flexural strength
270
MPa
Charpy impact strength (+23°C)
55
kJ/m²
Charpy impact strength (-30°C)
35
kJ/m²
Charpy notched impact strength (+23°C)
18
kJ/m²
Charpy notched impact strength (-30°C)
11
kJ/m²
Izod notched impact strength (+23°C)
18
kJ/m²

Thermal properties

Melting temperature (10°C/min)
290
°C
Glass transition temperature (10°C/min)
75
°C
Temp. of deflection under load (1.80 MPa)
285
°C
Temp. of deflection under load (0.45 MPa)
288
°C
Vicat softening temperature (50°C/h 50N)
285
°C
Coeff. of linear therm. expansion (parallel)
0.3
E-4/°C
Coeff. of linear therm. expansion (normal)
0.3
E-4/°C

Other properties

Humidity absorption
1.6
%
Density
1690
kg/m³

Material specific properties

Viscosity number
75
cm³/g

Diagrams

Applications

Coolant valve actuators

Industry
Automotive
Material
  • •} Higher torque and durability performance than PPA and PA66
  • •} Allows more compact actuator design and weight savings
  • •} Comparable performance to specialized materials without the need for expensive additives (e.g., carbon fiber or wear & friction optimizers) creates opportunities for cost savings
}
More information

Crankshaft Balance Gears

Industry
Automotive
Material
  • •} Allows for lightweight and more economical solutions
  • •} Allows for more reliable solutions
  • •} Provides higher stiffness and chemical resistance
}
More information

Electronic throttle control actuators

Industry
Automotive
Material
  • •} Higher torque and durability performance than PPA and PA66
  • •} Allows more compact actuator design and weight savings
  • •} Comparable performance to specialized materials without the need for expensive additives (e.g., carbon fiber or wear & friction optimizers) creates opportunities for cost savings
}
More information

EPS gears

Industry
Automotive
Material
  • •} Allows for lightweight and more economical solutions
  • •} Allows for more reliable solutions
  • •} Provides higher stiffness and chemical resistance
}
More information

EPS Steering components: Gears, Flex couplers and Sensors

Industry
Automotive
Material
  • •} Reliable
  • •} Sustainable
  • •} Lightweight
  • •} Low NVH
  • •} High abrasion resistance
}
More information

Exhaust gas recirculation actuators

Industry
Automotive
Material
  • •} Higher torque and durability performance than PPA and PA66
  • •} Allows more compact actuator design and weight savings
  • •} Comparable performance to specialized materials without the need for expensive additives (e.g., carbon fiber or wear & friction optimizers) creates opportunities for cost savings
}
More information

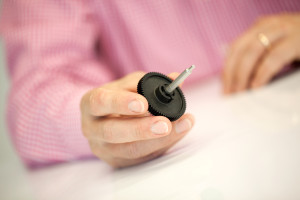

Gears

Industry
Automotive
Material
Envalior is a global leader in the design, engineering and testing of advanced thermoplastic materials for gears and actuation systems. Automakers and other global manufacturers trust Envalior Engineering Materials to improve the performance of complex automotive applications, appliances, consumer goods, and industrial applications. In fact, Stanyl® is used in nearly 40 million gears in 100 million automotive actuation systems each year, making it one of the most popular thermoplastic gear materials in the world.}
More information

Oil Pump Gears (2-wheelers)

Industry
Transportation
Material
  • •} Lightweight solution vs. metal
  • •} Abrasion-resistant
  • •} Lower friction at high temperatures
  • •} Creep resistance
  • •} Cycle-time advantages
}
More information

Oil Pump Gears (automotive)

Industry
Automotive
Material
  • •} Allows for lightweight and more economical solutions
  • •} Allows for more reliable solutions
  • •} Provides higher stiffness and chemical resistance
}
More information

Self propelled lawnmower transmission gears

Industry
Consumer goods
Material
  • •} 70% lighter than metal
  • •} Reduces noise
  • •} Heat-stabilized
  • •} Retains its mechanical properties at high temperatures up to 220°C (428°F)
  • •} Outperforms PPA, PA6T, PA9T, and often PPS and LCP
}
More information

Transmission Control Gears

Industry
Transportation
Material
  • •} Lightweight solution vs. metal
  • •} Abrasion-resistant
  • •} Lower friction at high temperatures
  • •} Creep resistance
  • •} Cycle-time advantages
}
More information

Turbo actuators

Industry
Automotive
Material
  • •} Higher torque and durability performance than PPA and PA66
  • •} Allows more compact actuator design and weight savings
  • •} Comparable performance to specialized materials without the need for expensive additives (e.g., carbon fiber or wear & friction optimizers) creates opportunities for cost savings
}
More information
