Stanyl® TS250F8
40% Glass Reinforced, Flame Retardant, Heat Stabilized
General Information
Stanyl® is our high-performance polyamide 46 used for applications in automotive, E&E, gears and outdoor power equipments.
Stanyl® is a high performance polyamide that provides unmatched performance and value for demanding applications in which superior heat resistance, design stiffness, wear & friction and process flow qualities are required.
Because Stanyl retains its mechanical properties at high temperatures up to 220°C, this makes it ideal for extremely high-performance applications, where it outperforms PPA, PA6T, PA9T, and often PPS and LCP.
Special features
- Heat stabilized
General Document
Regulatory Affairs
- Absence Declaration BNST2023-11-16
- Absence Declaration Biocidal Products2023-11-16
- Absence Declaration DMF (2009/251/EC: Dimethylfumarate)2023-11-16
- Absence Declaration ELV (2000/53/EC: Heavy metals)2024-02-15
- Absence Declaration EPA 20 High Priority Substances 20192023-11-16
- Absence Declaration Food Allergens2023-11-16
- Absence Declaration NMP (N-Methylpyrrolidone)2023-11-16
- Absence Declaration Nano Materials2023-11-16
- Absence Declaration Ozone Depleting Chemicals2024-06-27
- Absence Declaration PAH (Polycyclic Aromatic Hydrocarbons)2023-11-16
- Absence Declaration PBT chemicals under TSCA section 6(h)2023-11-16
- Absence Declaration PFAS2024-03-05
- Absence Declaration POPs (Persistent Organic Pollutants)2024-09-04
- Absence Declaration Phthalates (2005/84/EC: DEHP, DBP, BBP,DINP,DIDP, DNOP)2023-11-16
- Absence Declaration Red Phosphorus2023-11-16
- Absence Declaration opBDE (2003/11/EC: Octa- / Pentabromodiphenylether)2023-11-16
- CALIFORNIA PROPOSITION 65 (antimony oxide)2024-01-02
- Compliance Statement EU Sanctions and Embargos2024-05-16
- Conflict minerals declaration (EICC, GeSI)2024-05-15
- Deforestation Statement, Regulation (EU) 2023/1115 (EUDR)2024-09-19
- Packaging Declaration EU Decision 97/129/EC (labelling)2024-04-17
- Packaging, Packaging Waste and CONEG declaration (94/62/EC)2021-12-06
- REACH Registration Statement2024-03-27
- REACH STATEMENT KOREA2023-11-16
- REACH STATEMENT TURKYE2023-11-16
- RoHS Statement (2011/65/EC: Heavy metals)2024-02-01
- SVHC, REACH Annex XIV and –XVII Statement2024-11-08
- WEEE brominated flame retardants2022-03-07
Processing technology
Injection Molding
Injection Molding
Applications
Rheological properties
Molding shrinkage [parallel]
0.3
%
Sim. to ISO 294-4
Molding shrinkage [normal]
0.9
%
Sim. to ISO 294-4
Spiral flow length 1.0 mm 800 bar
110
mm
-
Spiral flow length 1.0 mm 900 bar
120
mm
-
Spiral flow length 1.0 mm 1000 bar
130
mm
-
Mechanical properties
Tensile modulus
16000
MPa
ISO 527-1/-2
Tensile modulus (120°C)
8500
MPa
ISO 527-1/-2
Tensile modulus (160°C)
6200
MPa
ISO 527-1/-2
Tensile modulus, low thickness
16000
MPa
ISO 527-1/-2
Tens. Mod. (Thickness tested)
1
mm
ISO 527-1/-2
Stress at break
200
MPa
ISO 527-1/-2
Stress at break (120°C)
110
MPa
ISO 527-1/-2
Stress at break (160°C)
90
MPa
ISO 527-1/-2
Stress at break, at low thickness
200
MPa
ISO 527-1/-2
Stress at break (Thickness tested)
1
mm
ISO 527-1/-2
Strain at break
2
%
ISO 527-1/-2
Strain at break (120°C)
3
%
ISO 527-1/-2
Strain at break (160°C)
5
%
ISO 527-1/-2
Strain at break, at low thickness
1.8
%
ISO 527-1/-2
Strain at break (Thickness tested)
1
mm
ISO 527-1/-2
Flexural modulus
14000
MPa
ISO 178
Flexural modulus (120°C)
8500
MPa
ISO 178
Flexural modulus (160°C)
5500
MPa
ISO 178
Flexural strength
300
MPa
ISO 178
Flexural strength (120°C)
230
MPa
ISO 178
Flexural strength (160°C)
200
MPa
ISO 178
Charpy notched impact strength (+23°C)
14
kJ/m²
ISO 179/1eA
Charpy notched impact strength (-30°C)
13
kJ/m²
ISO 179/1eA
Izod notched impact strength (+23°C)
13
kJ/m²
ISO 180/1A
Izod notched impact strength (-40°C)
12
kJ/m²
ISO 180/1A
Weldline strength at thickness 1
50
MPa
ISO 527-1/-2
Weldline strain at thickness 1
0.5
%
ISO 527-1/-2
Thickness tested (1)
1
mm
ISO 527-1/-2
Weldline strength at thickness 2
50
MPa
ISO 527-1/-2
Weldline strain at thickness 2
0.4
%
ISO 527-1/-2
Thickness tested (2)
0.5
mm
ISO 527-1/-2
Thermal properties
Melting temperature (10°C/min)
295
°C
ISO 11357-1/-3
Glass transition temperature (10°C/min)
75
°C
ISO 11357-1/-2
Temp. of deflection under load (1.80 MPa)
290
°C
ISO 75-1/-2
Temp. of deflection under load (0.45 MPa)
290
°C
ISO 75-1/-2
Vicat softening temperature (50°C/h 50N)
290
°C
ISO 306
Coeff. of linear therm. expansion (parallel)
0.25
E-4/°C
ISO 11359-1/-2
Coeff. of linear therm. expansion (normal)
0.5
E-4/°C
ISO 11359-1/-2
Burning Behav. at 1.5 mm nom. thickn.
V-0
class
IEC 60695-11-10
Thickness tested
1.5
mm
IEC 60695-11-10
UL recognition
Yes
-
-
Burning Behav. at 3.0 mm nom. thickn.
V-0
class
IEC 60695-11-10
Thickness tested
3
mm
IEC 60695-11-10
UL recognition
Yes
-
-
Oxygen index
37
%
ISO 4589-1/-2
Glow Wire Flammability Index GWFI
960
°C
IEC 60695-2-12
GWFI (Thickness (1) tested)
3
mm
IEC 60695-2-12
Glow Wire Flammability Index GWFI
960
°C
IEC 60695-2-12
GWFI (Thickness (2) tested)
0.75
mm
IEC 60695-2-12
Glow Wire Ignition Temperature GWIT
960
°C
IEC 60695-2-13
GWIT (Thickness (1) tested)
3
mm
IEC 60695-2-13
Glow Wire Ignition Temperature GWIT
825
°C
IEC 60695-2-13
GWIT (Thickness (2) tested)
0.75
mm
IEC 60695-2-13
Relative Temperature Index - electrical
140
°C
UL746B
RTI electrical (Thickness (1) tested)
0.75
mm
UL746B
Relative Temperature Index - electrical
140
°C
UL746B
RTI electrical (Thickness (2) tested)
3
mm
UL746B
Relative Temperature Index - with impact
110
°C
UL746B
RTI with impact (Thickness (1) tested)
0.75
mm
UL746B
Relative Temperature Index - with impact
130
°C
UL746B
RTI with impact (Thickness (2) tested)
3
mm
UL746B
Relative Temperature Index - without impact
120
°C
UL746B
RTI without impact (Thickness (1) tested)
0.75
mm
UL746B
Relative Temperature Index - without impact
130
°C
UL746B
RTI without impact (Thickness (2) tested)
3
mm
UL746B
Thermal Index 2500 hrs
175
°C
IEC 60216/ISO 527-1/-2
Thermal Index 5000 hrs
163
°C
IEC 60216/ISO 527-1/-2
Thermal Index 10000 hrs
152
°C
IEC 60216/ISO 527-1/-2
Thermal Index 20000 hrs
141
°C
IEC 60216/ISO 527-1/-2
Electrical properties
Relative permittivity (100Hz)
4.3
-
IEC 62631-2-1
Relative permittivity (1 MHz)
4
-
IEC 62631-2-1
Relative permittivity (1GHz)
3.6
-
IEC 61189-2-721
Dissipation factor (100 Hz)
60
E-4
IEC 62631-2-1
Dissipation factor (1 MHz)
160
E-4
IEC 62631-2-1
Dissipation factor (1GHz)
250
E-4
IEC 61189-2-721
Volume resistivity
>1E13
Ohm*m
IEC 62631-3-1
Surface resistivity
Ohm
IEC 62631-3-2
Electric strength
30
kV/mm
IEC 60243-1
Comparative tracking index
350
V
IEC 60112
Other properties
Water absorption
4.6
%
Sim. to ISO 62
Water absorption in water at 23°C after 24h
1.3
%
ISO 62
Humidity absorption
1.3
%
Sim. to ISO 62
Density
1770
kg/m³
ISO 1183
Material specific properties
Viscosity number
150
cm³/g
ISO 307, 1157, 1628
Diagrams
Applications
FPC connectors
Industry
Electronics
Material
- •} Reduced environmental impact due to lower carbon footprint
- •} Low warpage
- •} Low moisture absorption
- •} High melt temperature (325°C, 617°F)
- •} High glass transition temperature (125°C, 257°F)
Reflow connectors
Industry
Electronics
Material
- •} Cost-effective
- •} High flowability
- •} Enable thin-wall designs
- •} Low moisture absorption
- •} Flame retardant

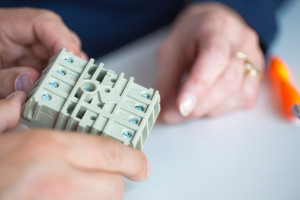

Relay Bases
Industry
Electrical
Material
This application is used in computer or electrical products. This application is used for signalling or power turn on or off.}
WtB and BtB Connectors
Industry
Electronics
Material
- •} Good processability
- •} Enables thin-walled designs
- •} Alternative to liquid crystal polymer
- •} Available in halogen- and red phosphorous-free grades
