ForTii® T11

30% Glass Reinforced, PA4T, Electro-friendly, Halogen free and free of red phosphorous, Certified V-0 at 0.2mm

Back to results

General Information

ForTii® is a breakthrough high temperature polyamide with halogen-free and halogen containing flame retardant grades for demanding applications in the electronics, lighting, automotive, white goods, industrial and aerospace industries.
We developed ForTii® in close co-operation with leading OEMs and tier 1 connector and socket manufacturers to ensure we give our customer what they want – and need.
That means a high temperature polyamide with a broad and versatile portfolio of grades that deliver high performance with a unique balance of properties.
Product

ForTii® T11 has optimal toughness and is the best solution for (automotive) electrical components in harsh environments to minimize the risk of cracking and to provide design freedom and product reliability in terms of thermal shock ageing >1000 cycles. T11 passes JEDEC MSL 1 reflow performance (for specified thickness), reaches CTI ≥800V for heavy duty components, is all-color VDE approved and has electrical RTI rating of 140°C at 0,75 mm.

Special features
  • Phosphorous free
  • VDE certified
General Document
Regulatory Affairs
  • Absence Declaration BNST2023-11-16
  • Absence Declaration Biocidal Products2023-11-16
  • Absence Declaration DMF (2009/251/EC: Dimethylfumarate)2023-11-16
  • Absence Declaration ELV (2000/53/EC: Heavy metals)2024-02-15
  • Absence Declaration EPA 20 High Priority Substances 20192023-11-16
  • Absence Declaration Food Allergens2023-11-16
  • Absence Declaration NMP (N-Methylpyrrolidone)2023-11-16
  • Absence Declaration Nano Materials2023-11-16
  • Absence Declaration Ozone Depleting Chemicals2024-06-27
  • Absence Declaration PAH (Polycyclic Aromatic Hydrocarbons)2023-11-16
  • Absence Declaration PBT chemicals under TSCA section 6(h)2023-11-16
  • Absence Declaration PFAS2024-03-05
  • Absence Declaration POPs (Persistent Organic Pollutants)2024-09-04
  • Absence Declaration Phthalates (2005/84/EC: DEHP, DBP, BBP,DINP,DIDP, DNOP)2023-11-16
  • Absence Declaration Red Phosphorus2023-11-16
  • Absence Declaration opBDE (2003/11/EC: Octa- / Pentabromodiphenylether)2023-11-16
  • CALIFORNIA PROPOSITION 65 (NDS)2024-01-02
  • CALIFORNIA PROPOSITION 65 (carbon black and titanium dioxide)2024-01-02
  • CALIFORNIA PROPOSITION 65 (carbon black)2024-01-02
  • Compliance Statement EU Sanctions and Embargos2024-05-16
  • Conflict minerals declaration (EICC, GeSI)2024-05-15
  • Deforestation Statement, Regulation (EU) 2023/1115 (EUDR)2024-09-19
  • Packaging Declaration EU Decision 97/129/EC (labelling)2024-04-17
  • Packaging, Packaging Waste and CONEG declaration (94/62/EC)2021-12-06
  • REACH Registration Statement2024-03-27
  • REACH STATEMENT KOREA2023-11-16
  • REACH STATEMENT TURKYE2023-11-16
  • RoHS Statement (2011/65/EC: Heavy metals)2024-02-01
  • SVHC, REACH Annex XIV and –XVII Statement2024-11-08
Yellow Card
Processing technology
Injection Molding
Automotive OEM
PSA, VW
OEM Specification
STELLANTIS - 01994-16-00164-MAN-01378-20-00216-(2021-07)
VW50180 (2015-05)
Applications
Have a question? Contact us

Rheological properties

Molding shrinkage (parallel)
0.3
%
Molding shrinkage (normal)
1.2
%
Spiral flow length 1.0 mm 1000 bar
115
mm

Mechanical properties

Tensile modulus
11500
MPa
Tensile modulus (-40°C)
12000
MPa
Tensile modulus (80°C)
10800
MPa
Tensile modulus (100°C)
10000
MPa
Tensile modulus (120°C)
8000
MPa
Tensile modulus (140°C)
5700
MPa
Tensile modulus (160°C)
5000
MPa
Tensile modulus, low thickness
10800
MPa
Tens. Mod. (Thickness tested)
1
mm
Stress at break
160
MPa
Stress at break (-40°C)
180
MPa
Stress at break (80°C)
130
MPa
Stress at break (100°C)
120
MPa
Stress at break (120°C)
105
MPa
Stress at break (140°C)
80
MPa
Stress at break (160°C)
70
MPa
Stress at break, at low thickness
165
MPa
Stress at break (Thickness tested)
1
mm
Strain at break
2.2
%
Strain at break (-40°C)
2.3
%
Strain at break (80°C)
2.1
%
Strain at break (100°C)
2.1
%
Strain at break (120°C)
2.9
%
Strain at break (140°C)
3.6
%
Strain at break (160°C)
4.5
%
Strain at break, at low thickness
2.1
%
Strain at break (Thickness tested)
1
mm
Flexural modulus
11000
MPa
Flexural modulus (80°C)
10500
MPa
Flexural modulus (120°C)
8200
MPa
Flexural modulus (160°C)
5000
MPa
Flexural strength
255
MPa
Flexural strength (80°C)
205
MPa
Flexural strength (120°C)
160
MPa
Flexural strength (160°C)
110
MPa
Charpy impact strength (+23°C)
60
kJ/m²
Charpy notched impact strength (+23°C)
8
kJ/m²
Weldline strength at thickness 1
60
MPa
Weldline strain at thickness 1
0.7
%
Thickness tested (1)
4
mm
Weldline strength at thickness 2
70
MPa
Weldline strain at thickness 2
0.8
%
Thickness tested (2)
1
mm

Thermal properties

Melting temperature (10°C/min)
325
°C
Glass transition temperature (10°C/min)
125
°C
Temp. of deflection under load (1.80 MPa)
305
°C
Temp. of deflection under load (0.45 MPa)
323
°C
Coeff. of linear therm. expansion (parallel)
0.2
E-4/°C
Coeff. of linear therm. expansion (normal)
0.65
E-4/°C
Coeff. of linear therm. expansion (parallel)
0.3
E-4/°C
Coeff. of linear therm. expansion (normal)
0.35
E-4/°C
Thermal conductivity in plane
0.4
W/(m K)
Burning Behav. at 1.5 mm nom. thickn.
V-0
class
Thickness tested
1.5
mm
UL recognition
Yes
-
Burning Behav. at 3.0 mm nom. thickn.
V-0
class
Thickness tested
3
mm
UL recognition
Yes
-
Ball pressure temperature
305
°C
Glow Wire Flammability Index GWFI
960
°C
GWFI (Thickness (1) tested)
3
mm
Glow Wire Flammability Index GWFI
960
°C
GWFI (Thickness (2) tested)
0.25
mm
Glow Wire Ignition Temperature GWIT
800
°C
GWIT (Thickness (1) tested)
3
mm
Glow Wire Ignition Temperature GWIT
800
°C
GWIT (Thickness (2) tested)
0.75
mm
Relative Temperature Index - electrical
140
°C
RTI electrical (Thickness (1) tested)
0.35
mm
Relative Temperature Index - electrical
130
°C
RTI electrical (Thickness (2) tested)
0.2
mm
Relative Temperature Index - with impact
130
°C
RTI with impact (Thickness (1) tested)
0.35
mm
Relative Temperature Index - with impact
130
°C
RTI with impact (Thickness (2) tested)
3
mm
Relative Temperature Index - without impact
130
°C
RTI without impact (Thickness (1) tested)
0.35
mm
Relative Temperature Index - without impact
130
°C
RTI without impact (Thickness (2) tested)
3
mm
Thermal Index 2500 hrs
182
°C
Thermal Index 5000 hrs
170
°C
Thermal Index 10000 hrs
160
°C
Thermal Index 20000 hrs
149
°C

Electrical properties

Relative permittivity (100Hz)
4.2
-
Relative permittivity (1 MHz)
3.9
-
Relative permittivity (1GHz)
3.8
-
Relative permittivity (10GHz)
3.8
-
Dissipation factor (100 Hz)
64
E-4
Dissipation factor (1 MHz)
176
E-4
Dissipation factor (1GHz)
130
E-4
Dissipation factor (10GHz)
110
E-4
Volume resistivity
>1E13
Ohm*m
Surface resistivity
Ohm
Electric strength
33
kV/mm
Comparative tracking index
600
V
Comparative Tracking Index (above 600V)
≥800V
V

Other properties

Water absorption
4.1
%
Humidity absorption
1.6
%
Density
1460
kg/m³

Diagrams

Applications

Automotive e-motor Bobbins

Industry
Automotive
Material
  • •} Stanyl® PA46 also used in connectors, e-motor parts, bobbins, sensors, fuse boxes. Thermoconductive Stanyl XL-T (P968A) in use as well
  • •} ForTii® PA4T and Xytron™ PPS also materials to be used in electromotor applications
}
More information

Automotive Reflow Connectors

Industry
Automotive
Material
  • •} Reliable
  • •} High temperature resistant
  • •} High melting point
  • •} Cost effective
  • •} High co-planarity
  • •} Low warpage after soldering
  • •} High mechanical performance
  • •} High flowability enables thin wall designs
}
More information

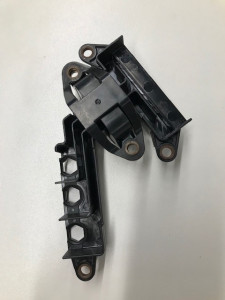

Brushholders (electro motors)

Industry
Automotive
Material
  • •} Stanyl® PA46 also used in connectors, e-motor parts, bobbins, sensors, fuse boxes. Thermoconductive Stanyl XL-T (P968A) in use as well
  • •} ForTii® PA4T and Xytron™ PPS also materials to be used in electromotor applications
}
More information

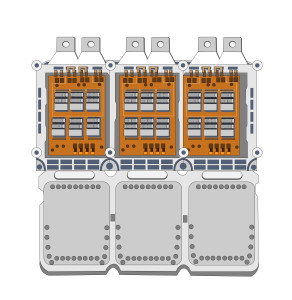

Bus bar/terminal block

Industry
Automotive
Material
  • •} Optimal mechanic properties
  • •} High CTI > 800V
  • •} Low moisture up-take
  • •} Thermal shock resistivity​
  • •} High and stable electrical strength​: thermal oxdiative stability
  • •} UL94-V0
  • •} Enhances zero emission mobility of BEV
}
More information

Car computer control system

Industry
Automotive
Material
Application requirements Superior mechanical and electrical performance Dedicated color portfolio High mechanical strength No blistering Material properties CTI 600V, RTI 140°C Halogen-free and free of ionic heat stabilizers HB and UL94 V0 option High mechanical strength}
More information

Coil insulation

Industry
Automotive
Material
  • •} Stanyl® PA46 also used in connectors, e-motor parts, bobbins, sensors, fuse boxes. Thermoconductive Stanyl XL-T (P968A) in use as well
  • •} ForTii® PA4T and Xytron™ PPS also materials to be used in electromotor applications
}
More information

Endlaminates (electro motors)

Industry
Automotive
Material
  • •} Reliable
  • •} Long term high temperature resistant
  • •} Good flowability enables thin wall designs
  • •} Durable
  • •} Good electrical insulation
  • •} Creep resistant
}
More information

High voltage connector

Industry
Automotive
Material
Application requirements Superior electrical performance Dedicated high voltage High mechanical strength Material properties CTI 600V, RTI 140°C Halogen-free UL94-V0 @ 0.75mm Superior processability}
More information

Miniature Circuit Breakers

Industry
Electrical
Material
  • •} Halogen-free
  • •} Flame retardant
  • •} Heat-stabilized
  • •} Strength and resilience
  • •} Easy processing
}
More information

Molded case circuit breakers

Industry
Electrical
Material
Most grades are available with halogenfree flameretardancy, and in specific electro-grey colour for housings.}
More information

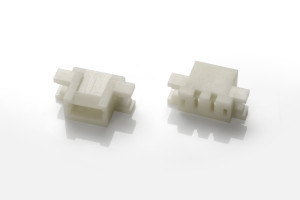

SMT terminal blocks

Industry
Electrical
Material
Supports the industry for miniaturization. Many grades are available with halogenfree flame-retardant ingredients as well.}
More information

Start/Stop: Alternator and Starter parts

Industry
Automotive
Material
Stanyl® PA46 also used in connectors, e-motor parts, bobbins, sensors, fuse boxes.}
More information

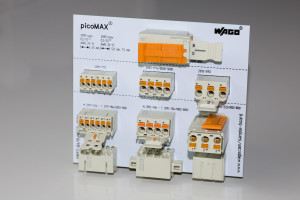

Terminal Blocks

Industry
Electrical
Material
  • •} Most grades are available now also with halogenfree flame-retardant ingredients
  • •} Stanyl® PA46 and ForTii® PA4T to be used for SMT versions
}
More information

Terminal blocks

Industry
Electronics
Material
Application requirements Listing at yellow card VDE approbation down till 0.4mm Halogen-free flame retardant Lead-free SMT soldering Material properties Excellent heat stability under load High level of mechanical properties Good flowability}
More information
