Arnitel® EM630

Extrusion Grade, Food Contact Quality

Back to results

General Information

Arnitel® is a high-performance ThermoPlastic Copolyester (TPC) that offers you a unique combination of flexibility, high temperature resistance and strength - plus excellent processing characteristics.
In industries ranging from automotive to E&E, Arnitel® is increasingly being as a lighter, smarter, greener alternative to conventional rubbers – reducing environmental impact and ultimately, system costs.
The product is supported by an experienced and knowledgeable global team continuously working on new ideas and applications, as well as exploring new markets. By listening to your needs and understanding your process and products, we develop solutions that make a real difference.
Special features
General Document
Regulatory Affairs
  • Absence Declaration BNST2023-11-16
  • Absence Declaration Biocidal Products2023-11-16
  • Absence Declaration DMF (2009/251/EC: Dimethylfumarate)2023-11-16
  • Absence Declaration ELV (2000/53/EC: Heavy metals)2024-02-15
  • Absence Declaration EPA 20 High Priority Substances 20192023-11-16
  • Absence Declaration Food Allergens2023-11-16
  • Absence Declaration NMP (N-Methylpyrrolidone)2023-11-16
  • Absence Declaration Nano Materials2023-11-16
  • Absence Declaration Ozone Depleting Chemicals2024-04-25
  • Absence Declaration PAH (Polycyclic Aromatic Hydrocarbons)2023-11-16
  • Absence Declaration PBT chemicals under TSCA section 6(h)2023-11-16
  • Absence Declaration PFAS2024-03-05
  • Absence Declaration POPs (Persistent Organic Pollutants)2023-10-27
  • Absence Declaration Phthalates (2005/84/EC: DEHP, DBP, BBP,DINP,DIDP, DNOP)2023-11-16
  • Absence Declaration Red Phosphorus2023-11-16
  • Absence Declaration opBDE (2003/11/EC: Octa- / Pentabromodiphenylether)2023-11-16
  • CALIFORNIA PROPOSITION 65 (INDUSTRIAL USE)2024-01-02
  • Conflict minerals declaration (EICC, GeSI)2024-03-21
  • Food Contact Canada Information (LONO)2019-07-08
  • Food Contact Declaration Europe Arnitel®2023-11-06
  • Food Contact Declaration Europe Arnitel®2023-11-10
  • Food Contact Declaration USA Arnitel®2023-11-21
  • Food Contact India Information Letter2023-05-11
  • Packaging, Packaging Waste and CONEG declaration (94/62/EC)2021-12-06
  • REACH Registration Statement2024-03-27
  • REACH STATEMENT KOREA2023-11-16
  • REACH STATEMENT TURKYE2023-11-16
  • RoHS Statement (2011/65/EC: Heavy metals)2024-02-01
  • SVHC, REACH Annex XIV and –XVII Statement2024-03-27
  • Turkish customs legislation info letter (EK-8 form)2023-11-16
Yellow Card
Processing technology
Extrusion
Automotive OEM
GM
OEM Specification
GMW15702-250031
Applications
Have a question? Contact us

Rheological properties

Melt volume-flow rate
4
cm³/10min
Temperature
230
°C
Load
2.16
kg
Molding shrinkage [parallel]
1.5
%
Molding shrinkage [normal]
1.75
%

Mechanical properties

Flexural modulus
280
MPa
Charpy impact strength (+23°C)
N
kJ/m²
Charpy impact strength (-30°C)
N
kJ/m²
Charpy notched impact strength (+23°C)
N
kJ/m²
Charpy notched impact strength (-30°C)
12
kJ/m²
Izod notched impact strength (+23°C)
N
kJ/m²

Mechanical properties (die cutting)

Stress at break (normal)
49
MPa
Strain at break (normal)
680
%
Tear strength (normal)
144
kN/m
Tear strength (parallel)
161
kN/m

Thermal properties

Melting temperature (10°C/min)
212
°C
Vicat softening temperature (50°C/h 50N)
125
°C
Coeff. of linear therm. expansion (parallel)
1.85
E-4/°C
Coeff. of linear therm. expansion (normal)
1.85
E-4/°C
Burning Behav. at 1.5 mm nom. thickn.
HB
class
Thickness tested
1.5
mm
UL recognition
Yes
-

Electrical properties

Relative permittivity (100Hz)
3.8
-
Relative permittivity (1 MHz)
3.4
-
Dissipation factor (100 Hz)
110
E-4
Dissipation factor (1 MHz)
340
E-4
Volume resistivity
1E12
Ohm*m
Electric strength
22
kV/mm
Comparative tracking index
600
V

Other properties

Water absorption
0.6
%
Humidity absorption
0.2
%
Density
1240
kg/m³
Apparent density
760
kg/m³

Mechanical properties (TPE)

Tensile modulus
275
MPa
Stress at 5% strain
12
MPa
Stress at 10% strain
17
MPa
Stress at 50% strain
21
MPa
Stress at 100% strain
21
MPa
Stress at break
27
MPa
Nominal strain at break
220
%
Shore D Hardness (3s)
60
-

Diagrams

Applications

Conveyor Belts

Industry
Industrial equipment
Material
  • •} Highly breathable
  • •} Bio-based alternative
  • •} High-temperature resistance
  • •} Excellent processing characteristics.
}
More information

Cooking Bag

Industry
Consumer goods
Material
  • •} Soft touch and feel
  • •} Reduces food waste
  • •} Bio-based (nearly 70% is made from the tropical castor bean plant)
}
More information

Power transmission belts

Industry
Industrial equipment
Material
Extruded profiles used in conveying i.e. tiles and other larger components through factories. The strength of Arnitel in such applications is the combination of high temperature resistance and creep, leading to less servicing.}
More information

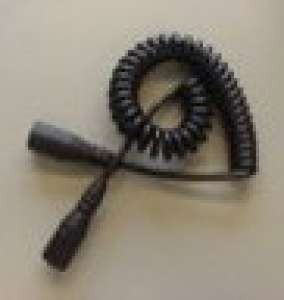

Truck Trailer Power and Signal Cord

Industry
Automotive
Material
Application with a perfect match for the Arnitel performance. Being outdoor in UV, surviving many years in operation, securing power and signal transfer from truck to trailer.}
