Arnitel® XG01JK

Extrusion Grade

General Information

Arnitel® is a high-performance ThermoPlastic Copolyester (TPC) that offers you a unique combination of flexibility, high temperature resistance and strength - plus excellent processing characteristics.
In industries ranging from automotive to E&E, Arnitel® is increasingly being as a lighter, smarter, greener alternative to conventional rubbers – reducing environmental impact and ultimately, system costs.
The product is supported by an experienced and knowledgeable global team continuously working on new ideas and applications, as well as exploring new markets. By listening to your needs and understanding your process and products, we develop solutions that make a real difference.
Special features
Regulatory Affairs

Rheological properties

Melt volume-flow rate
4.3
cm³/10min
Temperature
230
°C
Load
2.16
kg

Thermal properties

Melting temperature (10°C/min)
195
°C
Glass transition temperature (10°C/min)
-70
°C

Electrical properties

Volume resistivity
8.3E10
Ohm*m
Electric strength
19.8
kV/mm

Other properties

Water absorption
0.2
%
Humidity absorption
0.65
%
Density
1130
kg/m³

Mechanical properties (TPE)

Tensile modulus
60
MPa
Stress at 10% strain
3.5
MPa
Stress at 100% strain
5.3
MPa
Stress at break
10.6
MPa
Nominal strain at break
440
%
Shore A Hardness (3s)
88
-

Applications

AC Cables

Industry
Electronics
Material
AC UL jacket is for the American standard markets, whereas the AC EU jacket is suitable for (low smoke) EU markets. The AC insulation solutions are the most robust in class. The AC Power Plug utilizes the optimum performance of the jacket materials with injection molding characteristics.}

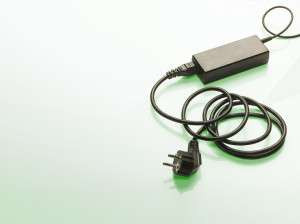

DC Cables

Industry
Electronics
DC Cables are generally used for standard electronics charging systems, like adapters. The latest designs can also be used for USB-C charging, leading to much thinner cables than AC with similar charging and safety characteristics.}

Robotic cable jackets & tubes

Industry
Robotics
  • •} Arnitel® is a proven halogen-free solution for cables used in many E&E applications.
  • •} Arnitel® offers excellent flame retardant performance for safety.
  • •} Arnitel® is formulated for both strength and flexibility, making it an ideal material for cable jackets and tubes.
}
