Arnitel® PB582-H

Blow Molding Grade, Heat Stabilized

Back to results

General Information

Arnitel® is a high-performance ThermoPlastic Copolyester (TPC) that offers you a unique combination of flexibility, high temperature resistance and strength - plus excellent processing characteristics.
In industries ranging from automotive to E&E, Arnitel® is increasingly being as a lighter, smarter, greener alternative to conventional rubbers – reducing environmental impact and ultimately, system costs.
The product is supported by an experienced and knowledgeable global team continuously working on new ideas and applications, as well as exploring new markets. By listening to your needs and understanding your process and products, we develop solutions that make a real difference.
Special features
  • Heat stabilized
General Document
Regulatory Affairs
  • Absence Declaration BNST2023-11-16
  • Absence Declaration Biocidal Products2023-11-16
  • Absence Declaration DMF (2009/251/EC: Dimethylfumarate)2023-11-16
  • Absence Declaration ELV (2000/53/EC: Heavy metals)2024-02-15
  • Absence Declaration EPA 20 High Priority Substances 20192023-11-16
  • Absence Declaration Food Allergens2023-11-16
  • Absence Declaration NMP (N-Methylpyrrolidone)2023-11-16
  • Absence Declaration Nano Materials2023-11-16
  • Absence Declaration Ozone Depleting Chemicals2024-06-27
  • Absence Declaration PAH (Polycyclic Aromatic Hydrocarbons)2023-11-16
  • Absence Declaration PBT chemicals under TSCA section 6(h)2023-11-16
  • Absence Declaration PFAS2024-03-05
  • Absence Declaration POPs (Persistent Organic Pollutants)2024-09-04
  • Absence Declaration Phthalates (2005/84/EC: DEHP, DBP, BBP,DINP,DIDP, DNOP)2023-11-16
  • Absence Declaration Red Phosphorus2023-11-16
  • Absence Declaration opBDE (2003/11/EC: Octa- / Pentabromodiphenylether)2023-11-16
  • CALIFORNIA PROPOSITION 65 (INDUSTRIAL USE)2024-01-02
  • Compliance Statement EU Sanctions and Embargos2024-05-16
  • Conflict minerals declaration (EICC, GeSI)2024-05-15
  • Deforestation Statement, Regulation (EU) 2023/1115 (EUDR)2024-09-19
  • Packaging Declaration EU Decision 97/129/EC (labelling)2024-04-17
  • Packaging, Packaging Waste and CONEG declaration (94/62/EC)2021-12-06
  • REACH Registration Statement2024-03-27
  • REACH STATEMENT KOREA2023-11-16
  • REACH STATEMENT TURKYE2023-11-16
  • RoHS Statement (2011/65/EC: Heavy metals)2024-02-01
  • SVHC, REACH Annex XIV and –XVII Statement2024-11-08
Processing technology
Blow Molding
Automotive OEM
GM, PSA, RENAULT
OEM Specification
FEM 03-20-007---
GMW15702-250053
GMW15702-250053-TPC-ET
PMR (2019-02)
SPA X62 5103
STELLANTIS - 01994-16-00164-MAN-01994-10-00094-(2021-07)
Applications
Have a question? Contact us

Rheological properties

Melt volume-flow rate
2.9
cm³/10min
Temperature
230
°C
Load
10
kg

Mechanical properties

Flexural modulus
310
MPa
Flexural modulus (120°C)
110
MPa
Charpy impact strength (+23°C)
N
kJ/m²
Charpy impact strength (-30°C)
N
kJ/m²
Charpy notched impact strength (+23°C)
N
kJ/m²
Charpy notched impact strength (-30°C)
15
kJ/m²
Izod notched impact strength (+23°C)
N
kJ/m²

Mechanical properties (die cutting)

Stress at break (normal)
41
MPa
Stress at 5% strain (normal)
11
MPa
Stress at 10% strain (normal)
15
MPa
Stress at 50% strain (normal)
17.5
MPa
Stress at 100% strain (normal)
17
MPa
Strain at break (normal)
610
%
Stress at 10% strain (parallel)
14
MPa
Stress at 10% strain (parallel) (+100°C)
7.1
MPa
Tear strength (normal)
131
kN/m
Tear strength (parallel)
137
kN/m

Thermal properties

Melting temperature (10°C/min)
220
°C
Temp. of deflection under load (0.45 MPa)
100
°C
Vicat softening temperature (50°C/h 50N)
105
°C

Other properties

Density
1230
kg/m³

Mechanical properties (TPE)

Tensile modulus
300
MPa
Stress at 5% strain
13
MPa
Stress at 10% strain
18
MPa
Stress at 50% strain
25
MPa
Stress at 100% strain
28
MPa
Stress at break
30
MPa
Nominal strain at break
150
%
Shore D Hardness (3s)
55
-

Diagrams

Applications

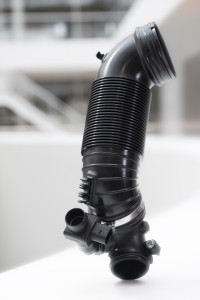

Clean Air Inlet Ducts

Industry
Automotive
Material
  • •} Lightweight
  • •} Economical
  • •} Reliable
  • •} Durable
  • •} Heat resistant
  • •} Chemical resistant
}
More information

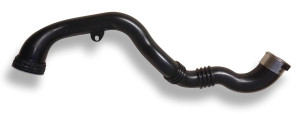

Cold Charged Air Ducts

Industry
Automotive
Material
Also injection molding grades are available}
More information

Hot Charged Air Ducts

Industry
Automotive
Material
  • •} Heat resistant
  • •} Lightweight
  • •} Reliable
  • •} Cost effective
}
More information
